CPOS-MR-Connector

Description

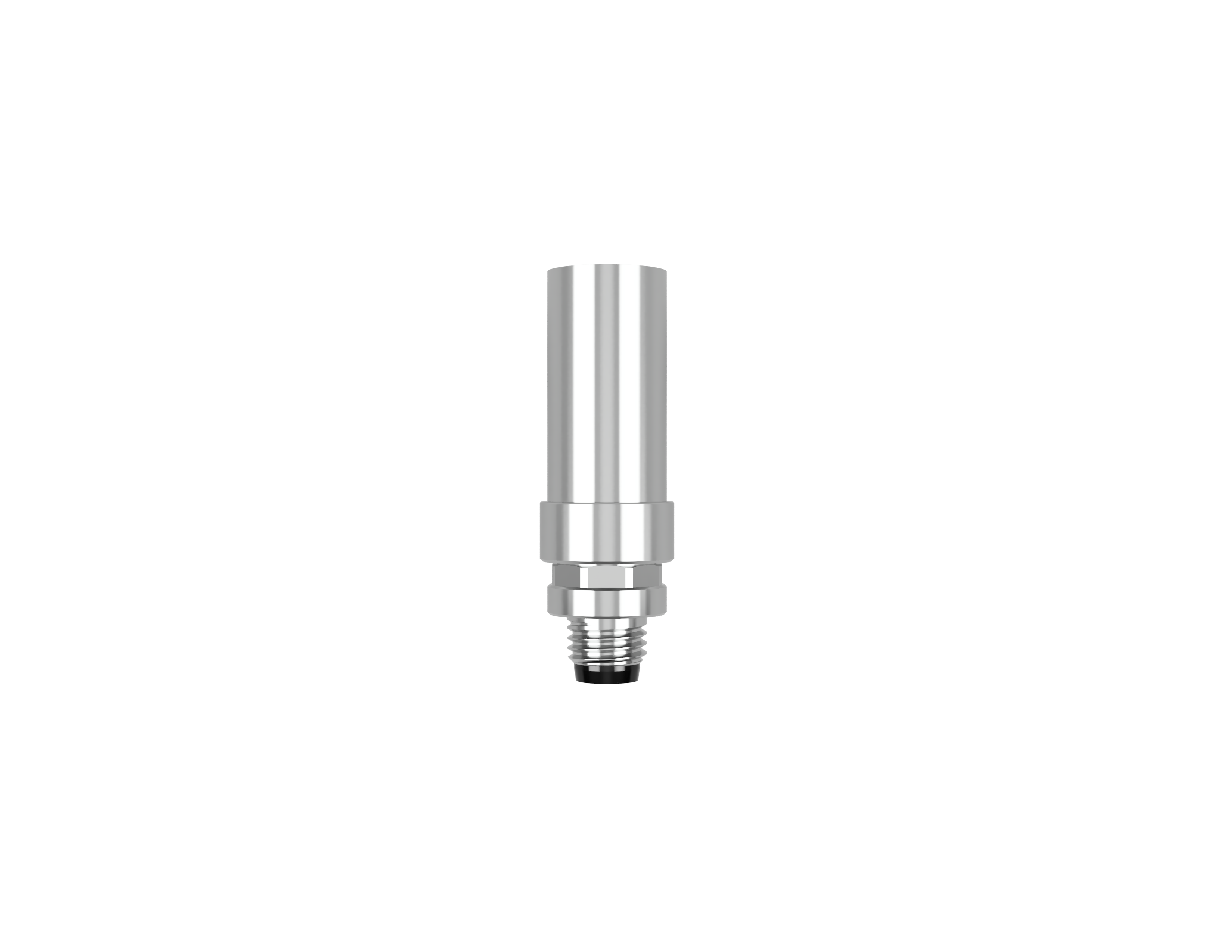

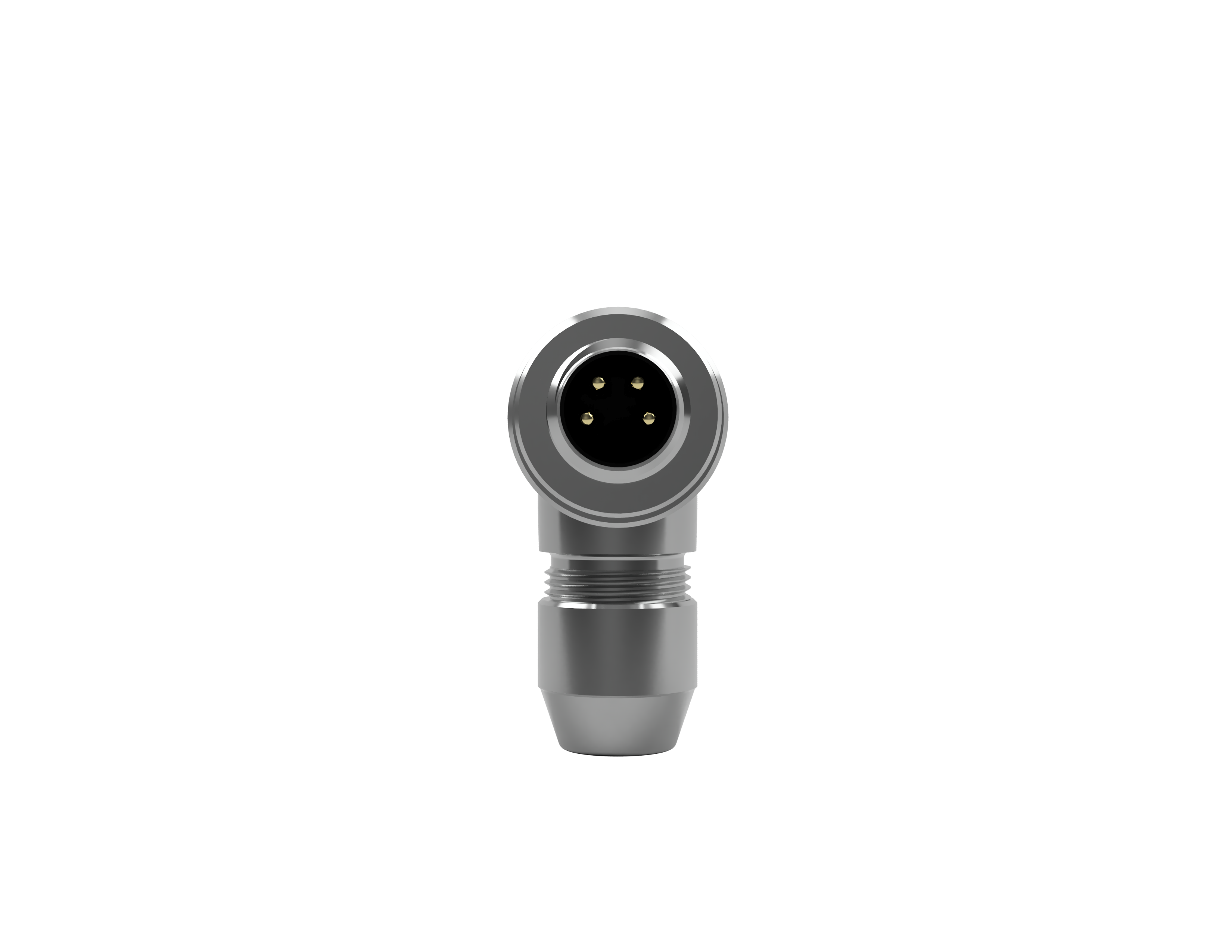

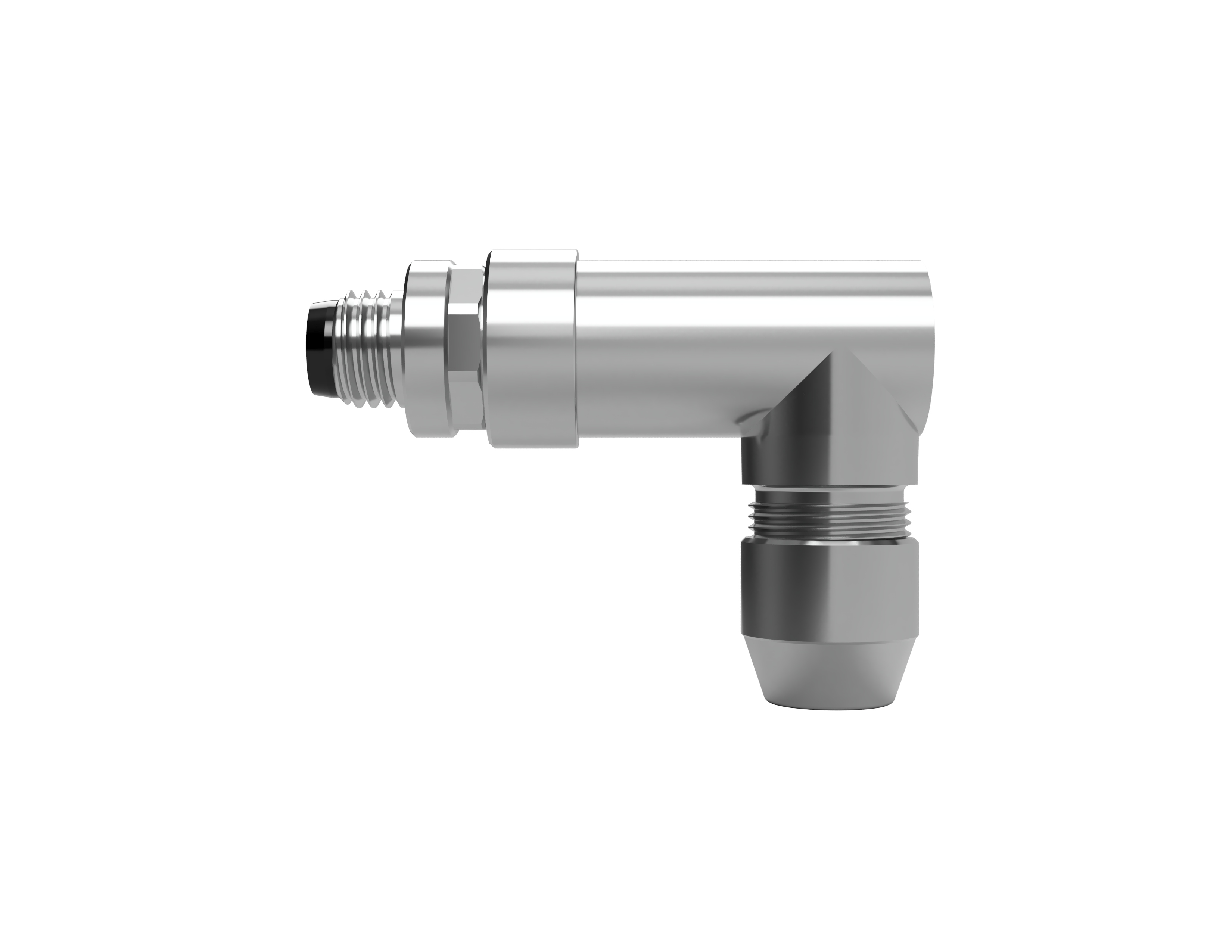

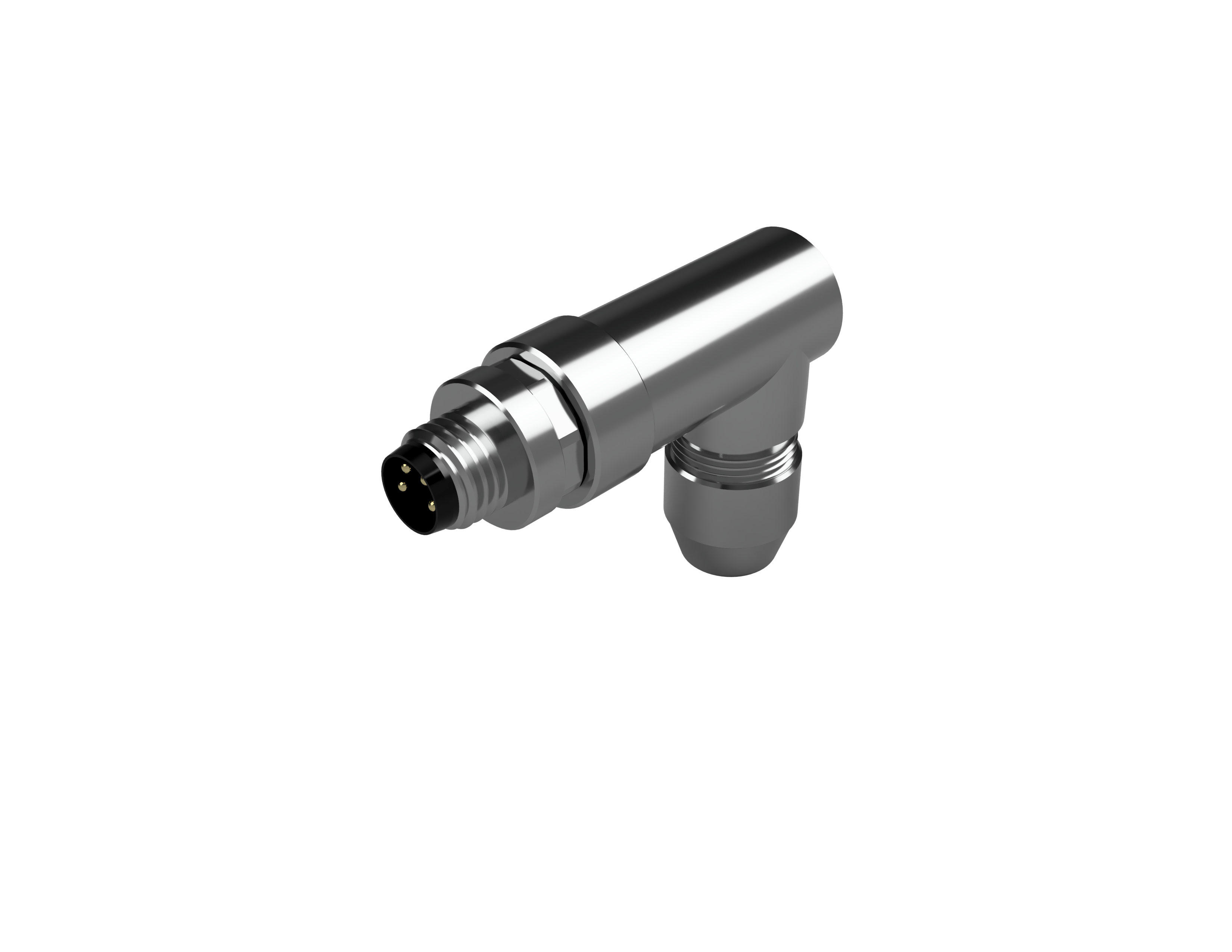

Closed Lopp Stepper Motor feedback cable connector male M8-4 angled, field installable, shielded.

Price

$71.68

Quantity

THE CPOS-MR is a single angled 4 position male M8-4 field-installable circular connector with a screw thread mating style. Its used for the connections made to the encoder attachment on the dSMXXXX series to another encoder attachment. Check the CPOS-X-XX data sheet for more information.

Datasheet

Manual

Drawing
